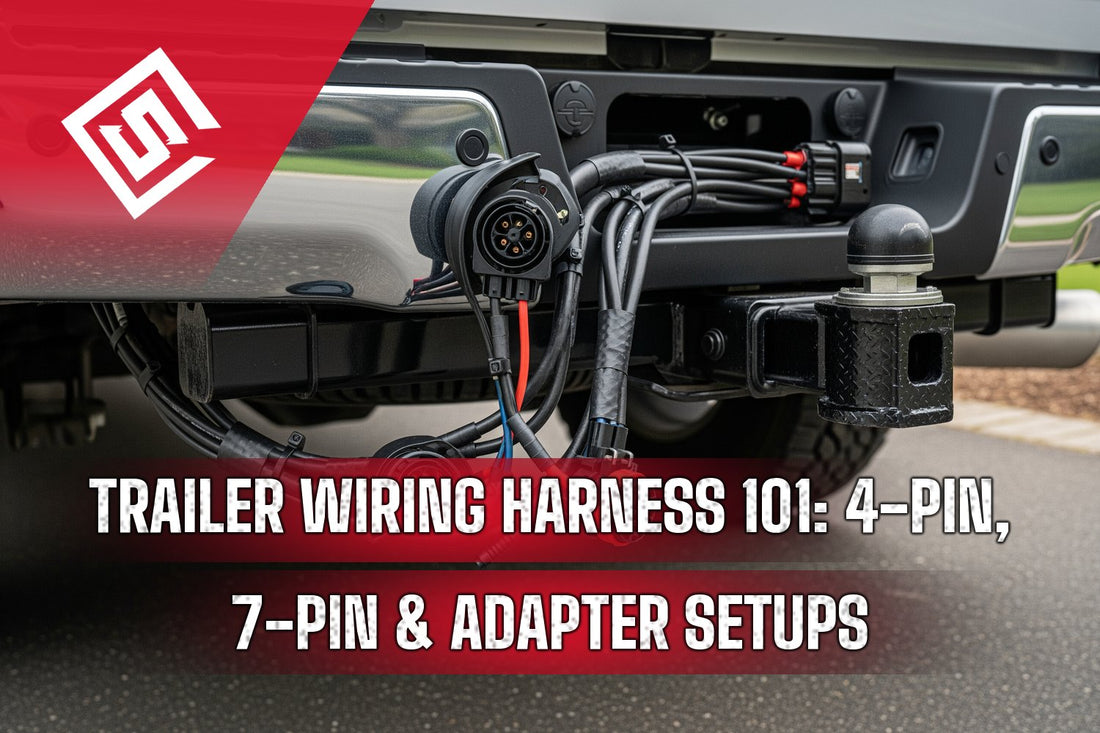

Trailer Wiring Harness 101: 4-Pin, 7-Pin & Adapter Setups Explained

What a Trailer Wiring Harness Actually Does

A trailer wiring harness is the bundle of wires, plugs, and sockets that connects your tow vehicle's electrical system to your trailer. Press the brake pedal in the cab. The brake light shows up on the trailer 30 feet behind you. Flip the turn signal. The same flash hits the back corner of the trailer.

That's not optional. Federal law requires the trailer to mirror your vehicle's brake and turn signals. The DOT spells it out in federal lighting requirements for towed vehicles. No working lights means no legal trip down the highway.

Pin count equals function count. A 4-pin handles four jobs. A 7-pin handles seven. The more circuits your trailer needs—electric brakes, a battery, reverse lights, the more pins on the plug.

One wire matters more than the others: the white ground. It completes the circuit between your truck's frame and the trailer's frame. Lose that connection (corroded pin, broken solder joint, paint between a ring terminal and bare metal) and your lights will flicker, dim, or quit altogether. Owners doing utility work and outdoor hauling often run into this exact issue, which is why waterproof seat covers for work and towing vehicles and a clean ground are both on the same prep list before any haul.

A 4-pin setup is plenty for kayak trailers, mulch haulers, bike racks, and small utility rigs. Anything with onboard brakes or a battery needs more pins.

The 4-Pin Flat Connector: Functions, Colors, and When to Use It

The 4-pin flat is the workhorse of small-trailer wiring. It's the white plastic connector you've seen dangling off the back of every U-Haul, kayak hauler, and homemade plywood trailer in America. Four wires. Four jobs. Done.

Wire-by-Wire Color Breakdown

Memorize these four colors and you can troubleshoot 90% of basic trailer light problems with nothing but a test light.

Wire Color	Function	Why It Matters
White	Ground	Completes the circuit. The #1 failure point.
Brown	Running / tail lights	Comes on with your headlights and parking lights.
Yellow	Left turn + brake	Combined signal in most US wiring.
Green	Right turn + brake	Combined signal in most US wiring.

The white ground is where most people lose the fight. If it's loose, corroded, or grounded to a painted spot on the trailer frame, every other wire downstream gets weird. Lights flicker when you hit the brakes. Turn signals make the running lights pulse. Brake lights work but only when you wiggle the plug.

Right Trailer for a 4-Pin Setup

A 4-pin is the right call when your trailer is small, light, and has no electric brakes or battery. Think:

• Single-axle utility trailers (4x8, 5x10) hauling mulch, hay, or yard debris
• Kayak and canoe trailers
• Bike racks with integrated lighting
• Folding utility trailers under about 2,000 lbs

If you tow this kind of gear regularly, you're in the same crowd reading our piece on outdoor and hauling accessories for your vehicle. Same audience. Same use case.

What a 4-pin can't do: power electric trailer brakes, charge an onboard battery, or run reverse lights on the trailer. The four wires physically don't carry those circuits. If you need any of that, you're stepping up.

The 7-Way RV Blade Connector: Functions, Colors, and When to Use It

The 7-way RV blade is the round black connector you see on every half-ton and three-quarter-ton pickup with a factory tow package. Seven pins. Seven jobs. It does everything the 4-pin does and adds three big ones: electric brakes, 12V auxiliary power, and reverse lights.

Wire-by-Wire Color Breakdown

Wire Color	Function	Why It Matters
White	Ground	Same story. Bad ground kills everything.
Brown	Running / tail lights	Trailer marker and clearance lights.
Yellow	Left turn + brake	Combined signal.
Green	Right turn + brake	Combined signal.
Blue	Electric trailer brakes	Carries the signal from your brake controller.
Black	12V auxiliary power	Charges trailer battery, powers interior lights.
Red	Reverse lights	Lets the trailer's reverse circuit work.

Federal lamp performance is governed by FMVSS 108 lamp and lighting standards. Every brake and reverse circuit on a 7-pin needs to actually work, not just glow.

When Your Trailer Demands a 7-Pin

Electric trailer brakes are the big one. Anything over about 3,000 lbs loaded, you want brakes on the trailer wheels. Electric brakes need a brake controller in the cab plus the blue wire on a 7-pin.

The 12V auxiliary circuit is what charges the battery on a travel trailer or horse trailer while you're rolling down I-40. That black wire keeps the trailer's interior lights working when you stop overnight.

You need a 7-way RV blade for:

• Travel trailers and RVs with onboard batteries
• Horse trailers
• Enclosed cargo trailers over 3,000 lbs
• Dump trailers and equipment haulers
• Anything with a breakaway kit (the safety battery that applies trailer brakes if the trailer detaches)

If you're towing this kind of weight regularly with a pickup, you're also hard on the front seats. Worth a look at truck interior protection while towing before the work boots and grease take their toll.

The Middle Ground: 5-Pin and 6-Pin Connectors

Most folks never see these, but they exist and they'll catch you off guard at a friend's farm or on an older boat trailer.

A 6-pin round connector adds either electric brakes or 12V auxiliary power to the basic 4-pin functions, but not both. It's an in-between option that was more common before the 7-way RV blade became the standard. You'll find them on older horse trailers, some snowmobile haulers, and a fair number of boat trailers from the 1980s and 1990s.

A 5-pin connector typically adds one extra wire over a flat 4-pin, almost always for electric brakes. Less common, less standardized, and often homemade.

The catch with 5- and 6-pin setups: wire colors and pin assignments aren't standardized the way 4-pin and 7-pin are. One trailer's blue wire might be the brake circuit. Another's might be reverse. Always check what's on your trailer with a test light before plugging anything in. Buying an adapter blind is how you fry a brake controller.

If your trailer has a 5- or 6-pin plug and your truck has a 7-way socket, an adapter is usually cheaper than rewiring either side. More on that next.

Wiring Adapters: Bridging Mismatched Plugs

An adapter is a short connector that lets a vehicle's socket talk to a trailer's plug when they're different types. Three inches of plastic and copper. Twenty bucks. You're rolling.

The most common scenario: you've got a half-ton pickup with a factory 7-way RV blade socket, and your buddy's small utility trailer has a 4-pin flat. A 7-to-4 adapter plugs into your truck's socket and gives you a 4-pin pigtail on the other end. Instant fit.

Common Adapter Combinations

• 7-to-4, most common. Truck has 7-pin, trailer has 4-pin.
• 4-to-7, less common. Small SUV with 4-pin setup pulling a trailer with a 7-pin plug.
• 7-to-5 — older horse and boat trailers.
• Round-to-flat, older 4-pin round to modern 4-pin flat.

What Adapters Cannot Fix

This is where folks get burned. An adapter does not add electrical functions. It only routes the circuits your vehicle already has.

A 4-to-7 adapter cannot magically supply electric brake power if your vehicle's setup doesn't carry the blue wire. It cannot create a 12V auxiliary circuit out of nothing. If your tow vehicle was wired with only the four basic light functions, adapting the plug to look like a 7-pin gives the trailer a socket but not the actual juice for brakes or battery charging.

If you need real 7-pin functionality, you need real 7-pin wiring on the vehicle side. Which brings us to installation.

Installation Options: Plug-and-Play T-Connector vs. Universal Splice-In

There are two ways to add or upgrade a wiring setup on your tow vehicle: a vehicle-specific T-connector that plugs in clean, or a universal splice-in kit that taps into existing wires. Both work. One is a lot less painful than the other.

T-Connector (Vehicle-Specific Plug-and-Play)

A T-connector is a vehicle-specific setup that plugs directly into your taillight assembly's factory connectors. No cutting. No splicing. No scotch-locks. Disconnect the factory plug behind the taillight, drop the T-connector in between, and the setup routes signals to a new 4-pin or 7-pin socket near the hitch.

The pros stack up fast:

• Install time under an hour for most trucks and SUVs
• No factory wiring gets cut (resale value protected)
• Built-in taillight converter included on most kits
• If something fails, you unplug and swap

If your vehicle has a factory tow package, you may already have the T-connector wiring stub hidden behind the rear bumper. Always check before buying.

Splice-In (Universal Wiring)

Splice-in kits are universal. They work on any vehicle because you tap into the existing turn, brake, and tail wires manually with butt connectors, T-taps, or solder. You'll spend more time identifying which wire does what (test light required). You'll spend the most time running a 12V power wire from the battery to the rear if you're installing a powered converter for a heavier setup. That battery run is genuinely the worst part of the job.

A few EV owners on forums actually prefer splice-in kits because they don't trigger the vehicle's automatic tow mode. They want manual control over motor engagement and range. For most truck and SUV owners, that's not relevant. T-connector wins.

The rub with splice-in work: you're flat on your back under the rear bumper with a flashlight clenched in your teeth, crimpers in one hand, and a wire diagram on your phone propped against the tire. You're routing wire under the carpet, behind the kick panel, sometimes under the rear seat. Tools end up on the seat. Greasy gloves end up on the seat. A splice-in install gets messy fast. That's the moment most guys realize they should've thought about protecting your tow vehicle's interior before they started cutting wires. Made-to-fit covers come off when the job is done. Stains in factory cloth don't.

If you're doing this work in a daily-driver truck, seat protection during towing projects is worth thinking about before the dirty install starts, not after. Same goes if you read our piece on the best ways to keep your vehicle interior clean during installs. DIY work and clean upholstery rarely happen in the same afternoon.

The Role of a Taillight Converter

A taillight converter is a small electronic box that translates between two wiring conventions. American vehicles typically run combined turn and brake circuits. Your yellow wire carries both the left turn signal and the left brake light. European vehicles and some newer models split those signals into separate amber and red circuits.

Trailers in the US expect the combined American signal. If your vehicle uses the split European-style wiring, the trailer's brake lights will not work right without a converter sorting the signals. You might get a blinking brake light when you turn, or no brake light at all.

Most T-connector kits include a built-in converter sized for the vehicle. Splice-in kits often require a separate powered converter, which is why you end up running that 12V wire from the battery. If you skip the converter on a vehicle that needs one, the setup will be wired correctly and still won't work. Always check the kit's compatibility notes before you buy.

Troubleshooting Common Trailer Wiring Problems

Most trailer wiring problems trace back to two issues: a bad ground or a connection that wasn't sealed against weather. Fix those, and you've fixed maybe 95% of the calls I've heard about at boat ramps and farm gates.

Bad Ground: The #1 Culprit

The white ground wire completes the entire circuit. If it's loose, corroded, or grounded against painted metal instead of bare frame, the lights will misbehave in creative ways. Common symptoms:

• Brake lights only work when turn signal is on
• Running lights flicker when you hit a bump
• Turn signal causes the brake light to pulse
• All lights dim when you hit the brakes

Many trailers ground through the frame itself. The white wire connects to a screw on the trailer body, and the bulb housings ground to the frame separately. That works until rust, paint, or a loose screw breaks the path. A full-length ground wire run from the tow vehicle plug all the way to each light removes the trailer frame from the equation entirely. It's more wire, but it eliminates the most common failure mode.

Connection and Insulation Failures

From a thread on r/AskElectricians: standard 3M 33 electrical tape gets gooey in summer heat and loosens up. One owner asked for something better than 33 electrical tape that will actually stay on in the heat. It's a real problem, especially in the South.

Use better materials for lasting results.

Problem	Bad Solution	Better Solution
Tape gets gooey in summer heat	3M 33+ vinyl alone	Rubber splicing tape (3M 88+) under vinyl tape, or heat shrink tubing
Corroded connector pins	Spray cleaner only	Dielectric grease in every connection
Lights flicker on bumps	Re-tighten ground screw	Run dedicated ground wire to each light
Splice connection fails after a year	Crimped butt connector	Solder + heat shrink tubing
Plug pins green with corrosion	Sand and re-use	Replace plug, dielectric grease

Heat shrink tubing seals the splice from water, salt, and UV. Solder the wires, slide the tubing over, hit it with a heat gun. That joint will outlast the trailer.

Dielectric grease in the plug pins is the cheapest insurance you'll buy. A small dab in each pin keeps moisture out and prevents the green corrosion that eventually kills every connector.

Choosing the Right Harness for Your Towing Setup

The decision logic, stripped down:

• Small trailer, no brakes, no battery (kayak, mulch, bike rack, lawn): 4-pin flat. T-connector if available for your vehicle, splice-in if not.
• Medium-to-large trailer with electric brakes (dump trailer, equipment hauler, mid-size travel trailer): 7-way RV blade. Add a brake controller in the cab.
• Trailer with onboard battery (travel trailer, horse trailer, RV): 7-way RV blade. The black 12V auxiliary wire keeps the battery topped off while you drive.
• Vehicle and trailer plugs don't match: adapter, but only if your vehicle's setup already carries the circuits the trailer needs.
• Factory tow package: check first. You probably have a 7-pin socket already wired and don't need a kit at all.

If you're running electric brakes, a breakaway kit is mandatory in most states. It's a small battery on the trailer that applies the brakes automatically if the trailer ever separates from the truck. Cheap, simple, and the day you actually need it, you'll be glad it's there.

Truck owners who tow regularly run into a related issue worth thinking about: the common truck seat wear from hauling gear starts adding up faster than the wiring problems.

Frequently Asked Questions

Q: Do you need a wiring harness for a trailer?

Yes. Federal law requires trailer lights to mirror the tow vehicle's brake and turn signals. The wiring setup is the only way to make that happen. Without one, you're driving illegally and putting every car behind you at risk. If your vehicle didn't come with a factory tow package, you'll need to add either a plug-and-play T-connector or a splice-in kit before you tow anything on a public road.

Q: What is the difference between a 4-pin and a 5-pin trailer plug?

A 4-pin flat covers the four basic lighting functions: running lights, left turn/brake, right turn/brake, and ground. A 5-pin adds one extra circuit, almost always for electric trailer brakes. The fifth wire isn't standardized the way 4-pin colors are, so always test it with a meter before connecting. Most modern trailers needing brakes skip the 5-pin entirely and use a 7-way RV blade.

Q: What is the most important wire on a trailer harness?

The white ground wire. It completes the entire electrical circuit between the tow vehicle and the trailer. A loose, corroded, or missing ground is the single most common cause of flickering lights, dead brake lights, and weird turn signal behavior. If your trailer lights are acting up, check the ground first every time. A full-length ground wire run from the plug to each light eliminates 90% of the headaches.

Q: How much does it cost to have a trailer rewired?

Professional rewiring of a utility trailer typically runs $50 to $200, depending on local labor rates and how complex the trailer's wiring is. That's for the trailer side. On the tow vehicle side, a plug-and-play T-connector usually costs less than $80 in parts and installs in under an hour at home. Splice-in kits are cheaper but take longer and require basic electrical skills.

Q: Can I use a 7-pin adapter on a 4-pin trailer?

Yes. A 7-to-4 adapter plugs into your vehicle's 7-pin socket and outputs a standard 4-pin flat connection for the trailer. The adapter only passes the four basic lighting circuits (running, left, right, ground). It won't add electric brake or 12V auxiliary functions to a trailer that doesn't have them. Most truck owners with a factory 7-pin keep one in the toolbox for hauling friends' small trailers.

Q: What is a trailer wiring harness diagram?

A wiring diagram maps each pin or wire color to its electrical function. For a 4-pin flat: white = ground, brown = running lights, yellow = left turn/brake, green = right turn/brake. For a 7-way RV blade, add blue (electric brakes), black (12V aux), and red (reverse lights). Print one and tape it inside your toolbox lid. You'll reference it more than you think.

---
